Description

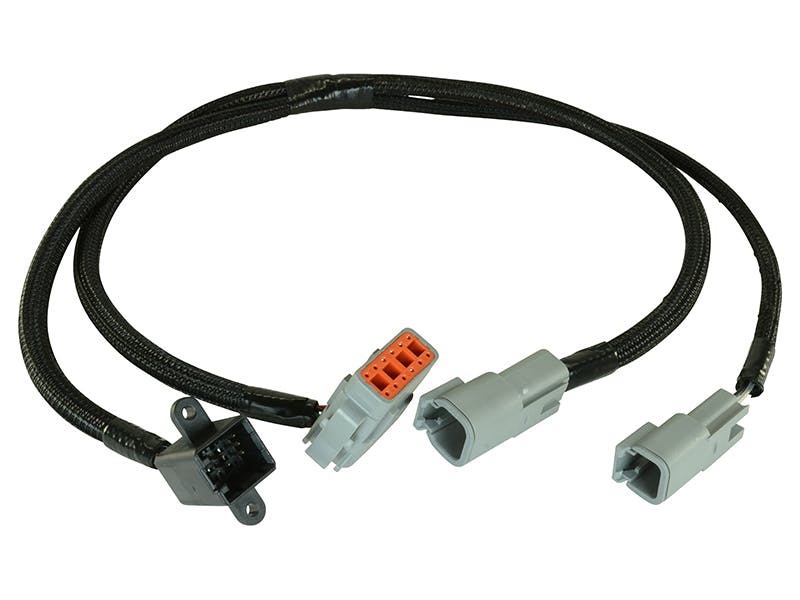

AEM’s Plug & Play Adapter Harness (PN 30-2220) for 2016-up Yamaha YXZs works with CD Carbon 5- and 7-inch Digital Dashes and includes YXZ-specific screen layouts designed to get you out riding with virtually no installation or setup time! This harness provides a true plug & play connection from a CD Carbon Dash to the Yamaha YXZ’s factory CAN bus through the factory dashboard connector and receives all available channels from the factory CAN bus network.
• -Plug and play with 2016-2020 Yamah YXZ
• -Braided harness.
• -Includes connector to integrate 6CSM.
• -Compatible with additional auxiliary CAN devices.
Information:
Fuel level is not transmitted through the factory CAN bus, so AEM’s 6 Channel CAN Sensor Module (PN 30-2226 SOLD SEPARATELY) is required to convert the fuel level signal so it can be displayed. The YXZ Plug & Play Harness includes a connector for the 6 Channel CAN Sensor Module and the configuration files are pre-programmed to display this channel if it is available. In addition to providing the ability to display Fuel Level on the YXZ, this module also provides a path to expand channels on your dash by adding two additional pressure or temperature sensors.
