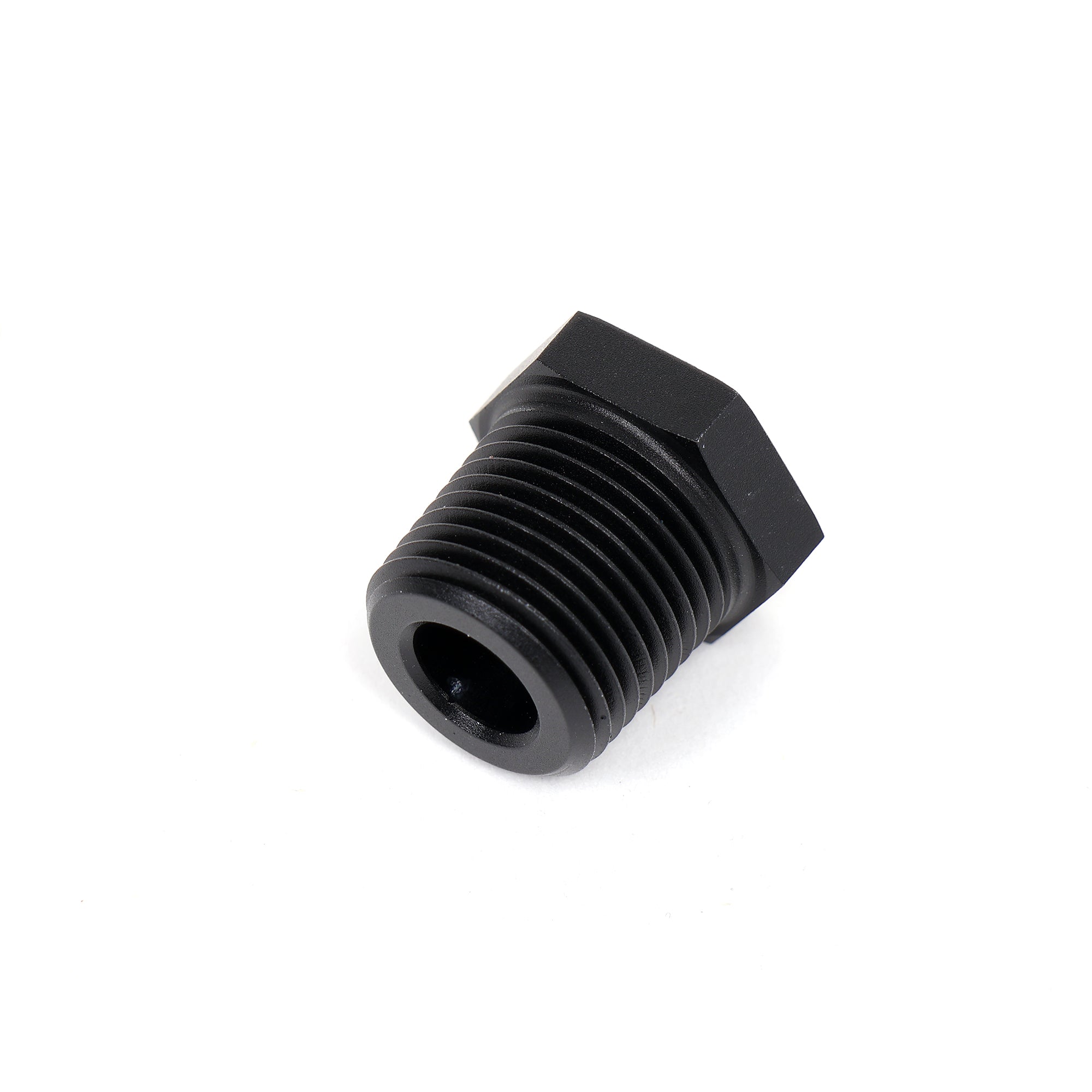

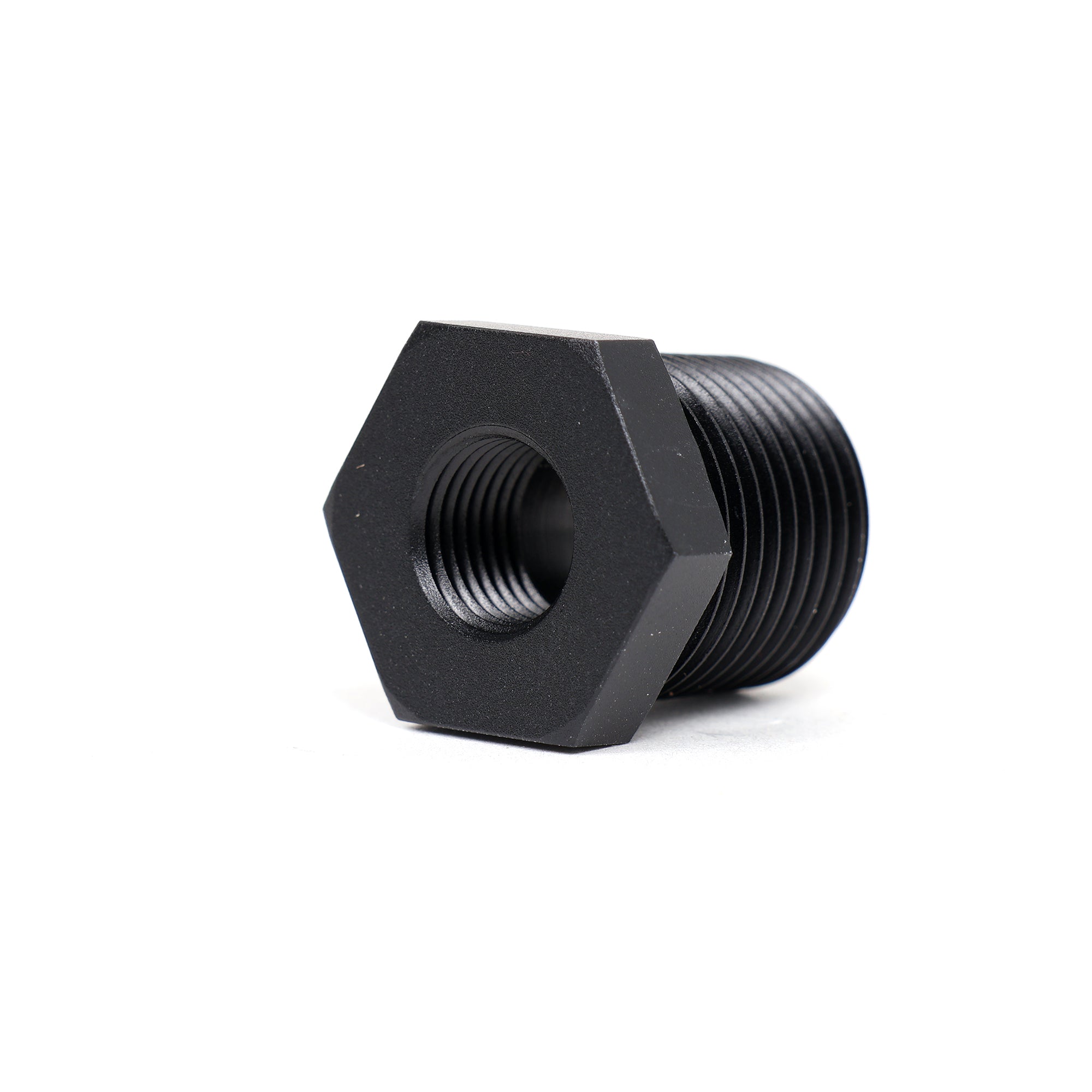

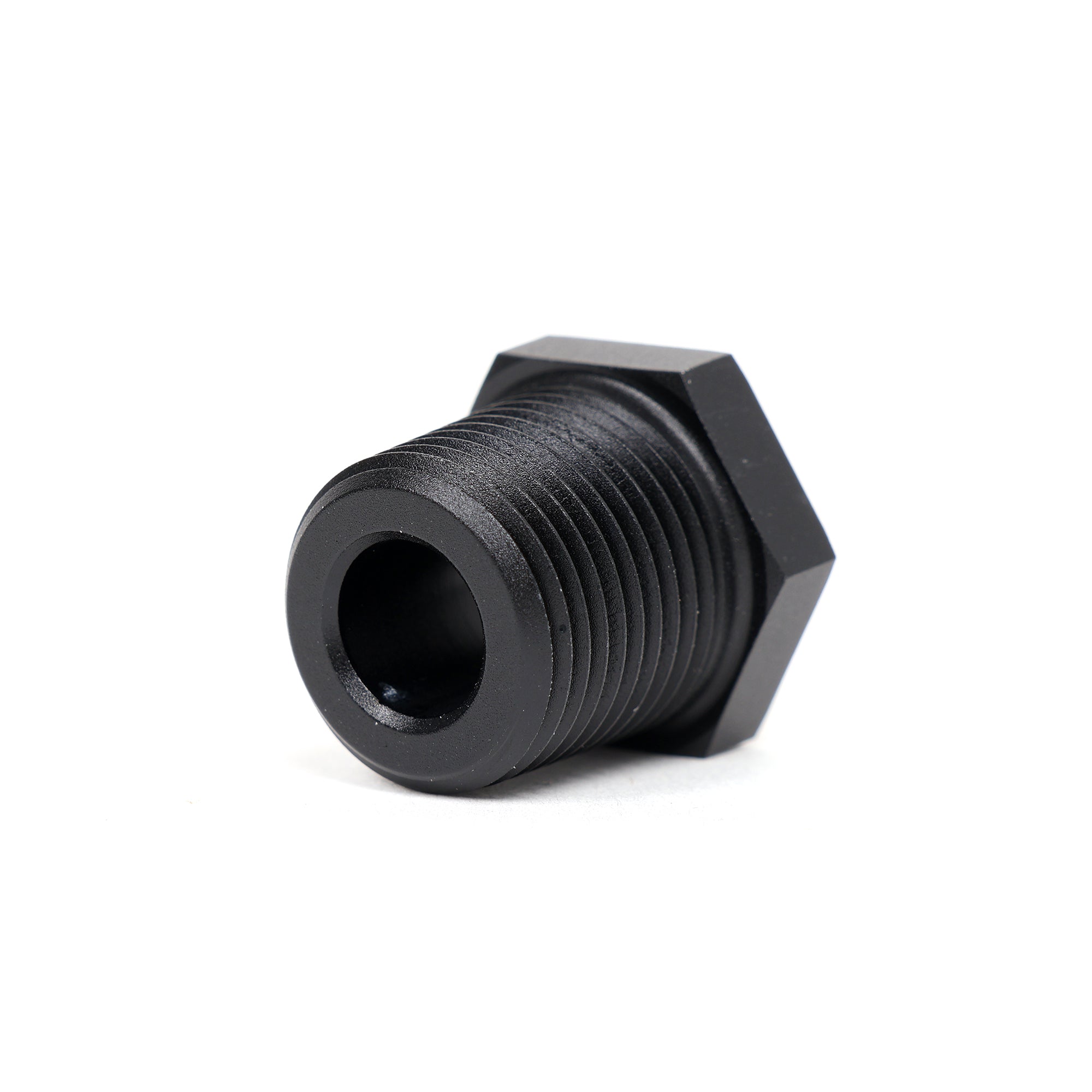

Hybrid Racing K Swap Coolant Temp Sensor Adapter

Description

Easily Adapt Your Coolant Temp Sensor for Your K Swap Easy to Install Outer Thread 3/8 BSPT Fits K20 & K24 Intake Manifolds Description Vehicle Fitment Technical Data Included Install Guide Hybrid Racing K Swap Coolant Temp Sensor Adapter Swapped a K series into your EF, EG, EK, DC, or DA chassis and now your factory temp gauge doesn’t work? The Hybrid Racing coolant temp sensor adapter fixes that. Your factory cluster’s looking for the two-wire B or D series coolant sender, but the K series uses a completely different sensor. This adapter screws into the unused idle air assist valve port on your K series water neck and gives you the correct threads to bolt in your temperature sensor . Your temp gauge works just like it did with the original engine. No splicing wires, no inline adapters, no recalibration. Uses the Factory Idle Air Assist Port The K series water neck has a port for the idle air assist valve that most people delete during a swap. This adapter threads into that port and provides the correct internal threads for a B or D series coolant sender. You’re using a port that’s already there instead of splicing into a coolant hose or drilling and tapping something that wasn’t meant to have a sensor. CNC Machined 6061 Aluminum The adapter’s CNC machined from 6061 aluminum and hard anodized black. The anodizing resists corrosion and the aluminum handles the heat without issue. It’s not a cheap brass fitting that’ll corrode or a plastic adapter that’ll crack from heat cycles. No Hose Splice Adapters Most people use inline hose adapters to splice the coolant sender into a coolant line. Those adapters take up space, look ugly, and they’re another potential leak point. This adapter bolts straight to the water neck using a port that’s already there, so your engine bay stays clean. What You Get Hybrid Racing coolant temp sensor adapter CNC machined 6061 aluminum Hard anodized black finish Correct threads for K series water neck and B/D series sender Sealing washer included Compatible K Series Engines K20A, K20A2, K20A3, K20Z1, K20Z3 K24A, K24A1, K24A2, K24A4, K24A8 Any K series water neck with idle air assist valve port Compatible Chassis 1988-1991 Honda Civic/CRX (EF) 1992-2000 Honda Civic (EG/EK) 1993-1997 Honda Del Sol 1990-1993 Acura Integra (DA) 1994-2001 Acura Integra (DC) Any chassis with B or D series coolant temp sender 2002-2006 Acura RSX 2004-2008 Acura TSX 2003-2007 Honda Accord 2002-2005 Honda Civic Si 2002-2006 Honda CR-V 2003-2008 Honda Element (1) Temperature Sensor Adapter
